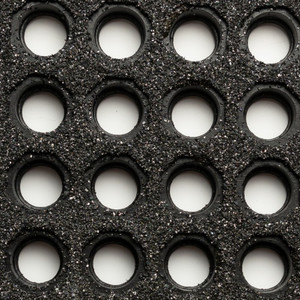

Grit-Step™ is a modular anti-fatigue matting system made with a general purpose rubber compound with a drainage top anti-slip surface texture and a multi-nib backing for comfort and ergonomic support of the mat. Grip-Step™ has a silicon carbide grit surface for extreme traction in the harshest of work environments. Large holes provide excellent drainage and aeration leaving a dry, clean work area. Also compatible with NoTrax® M.D. Ramp System® for easy on-site custom configurations and trip-resistant platforms.
Product Summary:
- Rubber compound and unique multi-nib support design offers fatigue relief
- Large hole drainage design keeps moisture and debris free away
- Easy to snap-together system for on-site custom work station platforms
- Silicon Carbide grit surface
- 551 M.D. Ramp System® and 552 extra wide M.D.-X Ramp System™ available
Specifications
| Model No | 505 |
|---|---|
| Available Colors | Black |
| Overall Thickness | 3/4 |
| Standard sizes | 3'x 3' |
| Group | Ergonomic, Anti-fatigue & Safety Matting |
| Filter Area | Wet/Dry and Oily Areas |
| Special Characteristics | Free of DOP, free of DMF, free of ozone depleting substances, free of silicone and free of heavy metals |
| Recommended Use | For placement in manufacturing plants, production lines, assembly lines, CNC machines, metal working for individual workstations and custom work platforms |
| Special Remarks | Easy to make custom configurations on-site by utilizing the #551 M.D. Ramp System®. Grit products are not intended for use in food service/processing applications. |
| Surface | Large Drainage Holes |
| Edges | Attachable beveled edges are available |
| Usage Intensity | Light duty |
| Custom Description | Available #551 M.D. Ramp System® or #552 M.D.-X Ramp System™ attachable ramps |
| Installation | Interlocking mats allow on-site customization. Square snap-together units can be assembled effortlessly. |
| Material Specifications | Natural rubber |
| Process | Compression Molding |
| Weight Lbs/sqft | 2.6 |
| Fire Rating US | Pass |
| Anti-Fatigue Rating | Good |
| Slip Resistance Rating | Good |
| Wear Resistance Rating | Good |
