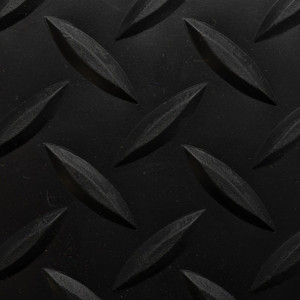

Diamond Switchboard Matting is a non-conductive floor matting made from a PVC compound, designed to provide insulation for the worker. The mat prevents the worker from being grounded, thereby eliminating the possibility of electrical shock. The diamond plate top surface provides increased traction and is easy to sweep clean. Switchboard matting is intended for use in dry environments in front of high voltage boxes, electrical fuse boxes and transformers.
Product Summary:
- Electrically Insulative Type 2 PVC compound
- Insulated matting engineered to protect workers from electric shock
- Diamond Plate top surface - Added traction and easy to sweep clean
- Each square foot of this matting is tested in conformance with ANSI/ASTM D-178 specifications
- Class 2 Di-electric Strength: 30,000 volts
- Proof test of 20,000 volts
- Recommended maximum use voltage: 17,000
Specifications
| Model No | 831 |
|---|---|
| Available Colors | Black; Black/Yellow |
| Overall Thickness | 1/4 |
| Roll Sizes | 2'x 75'; 3'x 75'; 4'x 75' |
| Custom Lengths | 2', 3' and 4' widths (up to 75' long) |
| Group | Ergonomic, Anti-fatigue & Safety Matting |
| Filter Area | Dry Areas |
| Special Characteristics | Free of DOP, free of DMF, free of ozone depleting substances, free of silicone and free of heavy metals|Recommended maximum usage: 17.000 Volts |
| Recommended Use | Around electric sub-stations, transformers and switches, electrical panels, engine and generator rooms |
| Special Remarks | It is highly recommended that the mat be replaced every 12 months for optimum performance |
| Surface | Industrial Diamond Plate |
| Edges | No borders |
| Usage Intensity | Heavy duty |
| Material Specifications | PVC (DOP free) |
| Process | Calendering |
| Weight Lbs/sqft | 1.7 |
| REACH Compliant | Reach compliant (Registration, Evaluation, Authorization and Restriction of Chemicals). |
| Anti-Fatigue Rating | Good |
| Slip Resistance Rating | Best |
| Wear Resistance Rating | Best |
