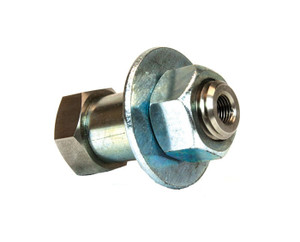

The Pass-through Check Valve (model 25968) can be used on the sides or back of flammable liquid safety cabinets. This unique system provides a means to dispense solvent through the wall of a cabinet. It can be installed either to dispense liquid into or dispense liquid out of the cabinet. Two ¼-in NPT threaded fittings (not included) are required to thread into both sides of the pass-through. Only install on the sides and back of the safety cabinet, never on the doors, bottom or top of a cabinet.
Note: This item is for the customer’s field installation only and will void the safety cabinet’s FM Approval. Please see the instruction guide for more information. This TechTALK has guidelines for ordering factory-installed pass-through, check valves for Justrite safety cabinets to maintain FM Approval and our 10-year warranty.
Product Summary:
- Includes safety check valve to prevent backflow
- Use to dispense liquid into or dispense liquid out of the cabinet
- All stainless-steel construction
- Customer-installed in the field
Specifications
| Model No | 25968 |
|---|---|
| UPC | 697841008618 |
| International Model No. | 25968 |
| Net Weight, lbs | 0.7 |
| Net Weight, kg | 0.3 |
Documentation:
TechTALK - Safety Cabinets: Self-Close Door vs Manual (145.65 KB)
IFC Self-Close Door Requirements by State for Hazmat Cabinets (282.48 KB)
NFPA-1 Fire Code Self-Close Door Requirements by State for Hazmat Cabinets (195.85 KB)
IFC Self-Close Door Requirements by State for Flammable Cabinets (1.54 MB)
NFPA 30 & OSHA Self-Close Door Requirements by State for Flammable Cabinets (299.25 KB)
Pass-Through Instruction Guide (527.77 KB)
