This freeze protected and insulated eye/face wash is intended for use where there is a possibility of the water freezing due to extreme cold climates.

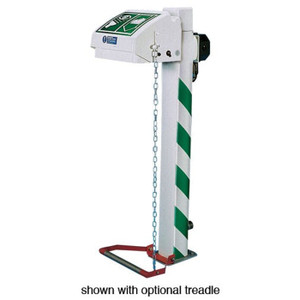

Pedestal-mounted eye/face wash unit, designed at ANSI-compliant height, is generally located in open areas away from walls. These freeze protected models are trace-tape heated and insulated, suitable for use in both Class 1 Division 2 hazardous areas, as well as non-hazardous areas. Made of durable, corrosion-resistant acrylic capped ABS, the eye/face wash incorporates an integral lid connected to the water valve for automatic operation‚ activate by simply pulling down the lid. Easy-to-reach flow regulator valve positioned on side of bowl adjusts to suit the severity of the accident.
Solid construction using galvanized mild steel pipework. Add optional foot treadle for a secondary means of activation. Some assembly may be required.
Electrical supply: 120V Single Phase, 60/50Hz
Product Summary:
- For cold climates with a minimum ambient operating temperature of -4°F (-20°C) or above
- Covered acrylic-capped ABS eye/face wash protects the bowl and eyewash diffusers from dust and debris
- Diffusers provide a gentle flow of aerated water and prevent further injury to the eyes
- Includes a separate universal eyewash sign for enhanced visibility
- Meets ANSI and EN 15154 standards and supports OSHA requirements
Specifications
| Model No | H45GP-1H |
|---|---|
| Color | white |
| UPC | 805042000489 |
| Net Weight, lbs | 30.9 |
| Net Weight, kg | 14 |
| Dimensions, Exterior | 48.1" H x 14.8" W x 24.9" D |
| 1223mm H x 375mm W x 375mm D | |
| Water Inlet Size NPT | 1-1/4 in (M) |
| Minimum Operating Pressure | 2 bar g, 29 PSI |
| Maximum Operating Pressure | 6 bar g, 87 PSI |
| Water Flow Eye/Face Liters/min | 11.4 |
| Water Flow Eye/Face US Gal/min | 3 |
| Operating Valve Material | Chrome plated brass |
| Eye/Face Wash Bowl Material | Acrylic-Capped ABS Plastic |
| Mounting Type | Pedestal |
| Pipework Material | Galvanized Steel |
| Activation Method | Pull Down on Lid |
| Minimum Ambient Temperature, °F | -4 |
| Minimum Ambient Temperature, °C | -20 |
| Maximum Ambient Temperature, °F | 95 |
| Maximum Ambient Temperature, °C | 35 |
| Electrical Equipment Classification | Class 1 Division 2, Gas Groups C & D, Temperature Code T3 |
| Electrical Supply | 120 VAC, Single Phase, 60/50 Hz |
| Heating Type | Trace Tape Heated and Pre-Insulated |
| Heating Load, Watts | 36 |
