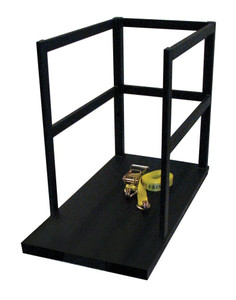

Transport multiple gas cylinders securely with a forklift using these end-load oriented pallets. Secure a group of gas cylinders using the 10,000-lb (4,536-kg) DOT compliant strap that attaches to frame at either 12-, 24- or 36-in (305-, 610- or 915-mm) from the deck. Fully welded construction from 11-gauge (3-mm) hot-rolled steel and structural tube steel, powder-coated to ensure longevity and chemical resistance.
Helps comply with OSHA, NFP1, NFPA 55, and CGA.
Product Summary:
- Fully enclosed 7.75-in wide (197-mm) forklift channels with two way access
- Textured finish on the pallet provides a non-skid surface
Specifications
| Model No | 35210 |
|---|---|
| UPC | 697841210684 |
| Cylinder Capacity | Varies |
| Cylinder Capacity with Max Cylinder Dia | (6) 9 inch |
| Mount Type | Forklift |
| Weight Capacity (lb) | 2400 |
| Weight Capacity (kg) | 1089 |
| Strap Style | Ratchet Binding |
| Straps Per Cylinder | 1 Total |
| Material Specifications | Steel |
| Complies with NFPA 1 Fire-Code | Yes |
| NFPA 55 | Yes |
| OSHA Compliance | Yes |
| CGA | Yes |
| Net Weight, lbs | 136 |
| Net Weight, kg | 62 |
| Net Dimensions (W x D x H) | 24 x 36 x 38 inches |
| 610 x 914 x 965 mm |
Documentation:
Gas-Cylinder-Storage-Handling-Catalog_2020 (1) (3.47 MB)
