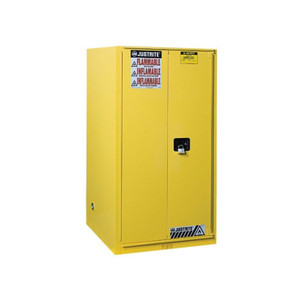

Protect workers, reduce fire risks, and improve productivity by storing flammable fuels and chemicals in code-compliant safety cabinets. Designed to meet OSHA and NFPA standards, Sure-Grip® EX cabinets are constructed of sturdy 18-gauge (1-mm) thick double-wall, welded steel with 1-1/2” (38-mm) of insulating air space for fire resistance. High-performance, self-latching doors close easily and securely for maximum protection under fire conditions. Fail-safe closing mechanism ensures three-point stainless steel bullet latching system works every time.
For added security, U-Loc™ handle comes with a cylinder lock and key set or accepts an optional padlock. Haz-Alert™ reflective warning labels are highly visible under fire conditions or during power outages when illuminated with a flashlight.
Patented SpillSlope® galvanized steel shelves direct spills to back and bottom of a leakproof 2” (51-mm) bottom sump. They adjust on 3” (76-mm) centers for versatile storage. Cabinets also feature dual vents with flame arresters, four adjustable self-leveling feet, grounding connector, and trilingual warning label. Durable lead-free epoxy/polyester powder-coat finish provides excellent chemical resistance.
Manual-close door(s) opens to a full 180 degrees and self-latches when pushed closed. Self-close door(s) shuts and latches automatically when a fusible link melts at 165°F (74ºC) under fire conditions. Unique, concealed self-closing mechanism offers obstruction-free access to contents.
All door styles meet OSHA and NFPA 30; self-close door styles also meet NFPA 1 and the International Fire Code.
Most cabinets are FM approved and all come with a ten-year warranty.
Product Summary:
- Protect workers
- Reduce fire risks
- Meet safety codes
- Ten-year warranty
Specifications
Model No | 899080 |
---|---|
UPC | 697841131514 |
International Model No. | 8990801 |
Color | Yellow |
Pallet Quantity | 1 |
Material Specifications | 18-Gauge CR Steel |
FM Approval | Yes |
OSHA Compliance | Yes |
Complies with International Fire Code | Yes |
Complies with NFPA Code 30 | Yes |
Complies with NFPA 1 Fire-Code | Yes |
Capacity | 90 gallon |
Liter Capacity | 341 |
Number of Doors | 1 |
Door Type | Sliding, self-close |
Number of Shelves | 2 |
Adjustable Shelves | Yes |
Dimensions, Exterior | 65" H x 43" W x 34" D |
1651mm H x 1092mm W x 864mm D | |
Dimensions, Interior | 60.5" H x 39.5" W x 30.3" D |
1537mm H x 1003mm W x 771mm D | |
Height (Inches) | 65 |
Width (Inches) | 43 |
Depth | 34 |
Net Weight, lbs | 433.0 |
Net Weight, kg | 196.4 |
Documentation:
TechTALK - Safety Cabinets: Self-Close Door vs Manual (145.65 KB)
IFC Self-Close Door Requirements by State for Flammable Cabinets (1.54 MB)
NFPA 30 & OSHA Self-Close Door Requirements by State for Flammable Cabinets (299.25 KB)
