Standard features include:
- 2-hour fire-rated construction — backed by a 15-year structural warranty
- 90-minute fire-rated door — third party tested and labeled
- Gravity air flow vents — UL Listed fire dampers with fusible links
- Secondary containment — leakproof all welded sump
- Removable, galvanized steel grate flooring
- 42-inch (1.07-m) wide door with UL Listed, keyed lockset for security
- Door closer — ensures doors close automatically
- NFPA 704 diamond decal provides "Right to Know" information
- Multiple static grounding connections
- Anchoring plates for maximum hold down protection
- Chemical and UV resistant coating, inside and out
- Forklift channels for easy relocation
- Meets EPA, NFPA 30 and NFPA 1 requirements
- FM-approved — including third party tested, fire-rated wall and roof design
Customize the locker to meet specific applications with a variety of optional features and accessories, including loading ramp, shelving, grounding kit, fire protection, heating/cooling, insulation, and lighting packages.
NOTE: Exterior dimensions include anchoring plates and door hardware.

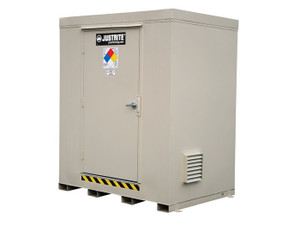

Product Summary:
- 2-hour fire-rated construction for safe and secure storage of flammables and combustibles
- 90-minute fire rated door
- Meets EPA, NFPA 30 and NFPA 1 requirements; FM-approved
- Customizable with a variety of optional features and accessories
Specifications
| Model No | 912060 |
|---|---|
| UPC | 697841158634 |
| International Model No. | 912060 |
| Color | Bone |
| Material Specifications | Steel |
| FM Approval | Yes |
| UL Approval | Doors |
| Complies with NFPA Code 30 | Yes |
| Complies with NFPA 1 Fire-Code | Yes |
| EPA Compliance | Yes |
| Dimensions, Exterior | 99" H x 95" W x 66" D |
| 2515mm H x 2413mm W x 1676mm D | |
| Dimensions, Interior | 82.5" H x 77.5" W x 53.5" D |
| 2096mm H x 1969mm W x 1359mm D | |
| 55-Gallon Drum Capacity | 6 |
| Base Capacity, lbs | 6000 |
| Base Capacity, kg | 2721.6 |
| Number of Doors | 1 |
| Door Type | Fire-rated |
| Door Hinge | Left |
| Door Height inch | 80 |
| Door Width inch | 42 |
| Door Height mm | 2032 |
| Door Width mm | 1067 |
| Sump Capacity - Gallons | 116 |
| Sump Capacity - liters | 439 |
| Sump Depth - inch | 7.0 |
| Sump Depth - mm | 178 |
| Storage Capacity cubic feet (Int Volume) | 198 |
| Storage Capacity cubic meters (Int Volume) | 5.6 |
| Net Weight, lbs | 3437.0 |
| Net Weight, kg | 1559.0 |
