Protect workers, reduce fire risks, and improve productivity by storing flammable fuels and chemicals in code-compliant safety cabinets. Designed to meet OSHA and NFPA standards, Sure-Grip® EX cabinets are constructed of sturdy 18-gauge (1-mm) thick double-wall, welded steel with 1-1/2” (38-mm) of insulating air space for fire resistance. High-performance, self-latching doors close easily and securely for maximum protection under fire conditions. Fail-safe closing mechanism ensures three-point stainless steel bullet latching system works every time.
For added security, U-Loc™ handle comes with a cylinder lock and key set or accepts an optional padlock. Haz-Alert™ reflective warning labels are highly visible under fire conditions or during power outages when illuminated with a flashlight.
Patented SpillSlope® galvanized steel shelves direct spills to back and bottom of a leakproof 2” (51-mm) bottom sump. They adjust on 3” (76-mm) centers for versatile storage. Cabinets also feature dual vents with flame arresters, four adjustable self-leveling feet, grounding connector, and trilingual warning label. Durable lead-free epoxy/polyester powder-coat finish provides excellent chemical resistance.
Manual-close door(s) opens to a full 180 degrees and self-latches when pushed closed. Self-close door(s) shuts and latches automatically when a fusible link melts at 165°F (74ºC) under fire conditions. Unique, concealed self-closing mechanism offers obstruction-free access to contents.
All door styles meet OSHA and NFPA 30; self-close door styles also meet NFPA 1 and the International Fire Code.
Most cabinets are FM approved and all come with a ten-year warranty.

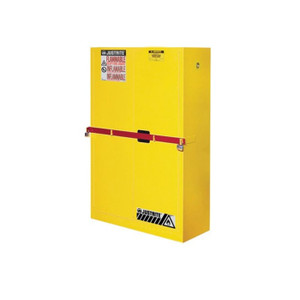

The High Security Safety Cabinet is ideal for use in high risk environments such as construction sites, correctional facilities, schools, maintenance areas, and nurseries/retail locations. In addition to all the Classic Cabinet features listed below the unique security system includes a high visibility steel barrier bar secured across both doors to deter prying. Padlock holes on crossbar and side bar channel are located on each side of the cabinet, provide double-layered steel strength and accept No. 5 Master Locks. Set of two keyed-alike locks are sold separately. Customarily, the yellow cabinet is used for flammables, the red is used for combustibles, the green is used for pesticides, and the blue is used for corrosives.
Product Summary:
- Suitable for high risk environments
- Protect workers
- Reduce fire risks
- Meet safety codes
- Ten-year warranty
- Multiple color options available
Specifications
Model No | SC29884Y |
---|---|
UPC | 697841101623 |
International Model No. | SC29884Y |
Color | Yellow |
Pallet Quantity | 2 |
Material Specifications | 18-Gauge CR Steel |
FM Approval | Yes |
OSHA Compliance | Yes |
Complies with International Fire Code | Yes |
Complies with NFPA Code 30 | Yes |
Capacity | 45 gallon |
Liter Capacity | 170 |
Number of Doors | 2 |
Door Type | Self-close |
Number of Shelves | 2 |
Adjustable Shelves | Yes |
Dimensions, Exterior | 65" H x 43" W x 18" D |
1651mm H x 1092mm W x 457mm D | |
Dimensions, Interior | 60.5" H x 39.5" W x 14.6" D |
1537mm H x 1003mm W x 370mm D | |
Height (Inches) | 65 |
Width (Inches) | 43 |
Depth | 18 |
Net Weight, lbs | 280.0 |
Net Weight, kg | 127.0 |
Documentation:
JTechTALK - Safety Cabinets: Self-Close Door vs Manual (145.65 KB)
IFC Self-Close Door Requirements by State for Flammable Cabinets (1.54 MB)
NFPA 30 & OSHA Self-Close Door Requirements by State for Flammable Cabinets (299.25 KB)
