Research environments using many different types of chemicals have special storage requirements. Whether using acids, bases or solvents, it is critical that incompatible liquids are segregated to avoid disastrous explosions or fire. The SDS (Safety Data Sheet) should be reviewed to determine chemical characteristics and recommended storage practices.

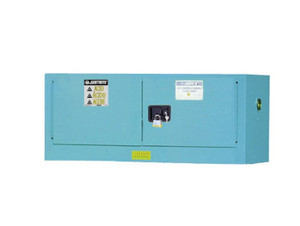

Designed to mount on top of our standard 30- and 45-gallon (114- and 170-L) safety cabinets, these Piggyback cabinets create a safe storage space without taking up any valuable floor space. Cabinets can also be used independently as a wall-mount unit or on a countertop.
The ChemCor® thermoplastic coating on all interior surfaces provides superior protection against corrosion from drips and off-gassing from harsh chemicals. Non-porous surface resists staining and cleans up easily.
ChemCor® Lined Piggyback Acid Safety Cabinets have the same quality features found in Justrite's flammable cabinets — including double-wall, 18-gauge (1mm) welded steel construction, 2" (51mm) liquid-tight containment sump, dual vents, adjustable shelves, three-point stainless steel bullet self-latching doors with U•Loc™ padlockable handle and Haz-Alert™ reflective warning labels. An all epoxy baked-on powder-coat finish, inside and out, provides increased chemical resistance. Interior ChemCor® liner ensures complete corrosion resistance and protection. Self-close door(s) shuts and latches automatically when a fusible link melts at 165°F (74ºC) under fire conditions. Unique, concealed self-closing mechanism offers obstruction-free access to contents.
Self Close models meet OSHA, NFPA 30, NFPA 1 and the International Fire Code. Cabinets are FM approved and come with a ten-year warranty.
Product Summary:
- Expand storage and safely segregate corrosives
- Provide complete protection from harsh acids and corrosive chemicals
- Fire-protection and code compliance
- 100% seamless thermoplastic coating protects interior surfaces from corrosion
- FM-approved
Specifications
Model No | 8913222 |
---|---|
UPC | 697841112537 |
International Model No. | 8913222 |
Color | Blue |
Pallet Quantity | 2 |
Material Specifications | 18-Gauge CR Steel |
FM Approval | Yes |
OSHA Compliance | Yes |
Complies with International Fire Code | Yes |
Complies with NFPA Code 30 | Yes |
Complies with NFPA 1 Fire-Code | Yes |
Capacity | 12 gallon |
Liter Capacity | 45 |
Number of Doors | 2 |
Door Type | Self-close |
Adjustable Shelves | No |
Dimensions, Exterior | 18" H x 43" W x 18" D |
457mm H x 1092mm W x 457mm D | |
Dimensions, Interior | 13" H x 39.5" W x 14.6" D |
330mm H x 1003mm W x 370mm D | |
Height (Inches) | 18 |
Width (Inches) | 43 |
Depth | 18 |
Net Weight, lbs | 110.0 |
Net Weight, kg | 49.9 |
