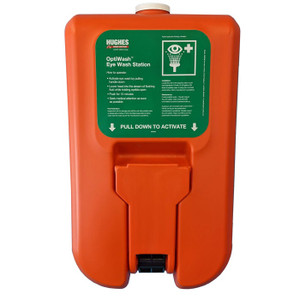

The Hughes portable, self-contained 10-gallon gravity-fed eyewash station is suitable wherever continuous water isn’t available—no plumbing needed. The gravity-fed eyewash supplies a continuous, controlled flow that exceeds the ANSI Z358.1 standard of 1.5 LPM (0.4 GPM) for 15 minutes, providing a reliable safety solution no matter where you are located. Concealed mounting bracket make moving and relocating easy. High-visibility color is easy to identify in emergency situations. Simple to use with pull-down activation handle. Easy to maintain—wide fill opening enables quick inspection, cleaning and filling.
Product Summary:
Key Benefits
- Portable design with concealed wall mounting bracket to make moving and relocating easy
- Controlled 1.5 LPM (0.4GPM) flow of water for 15 minutes
- Simple to use with pull-down activation handle
- Meets ANSI Z358.1 and EN15154 requirements
Specifications
| Model No | 10GFEWP |
|---|---|
| Color | Orange |
| UPC | 805042001554 |
| Capacity | 10 gallon |
| Liter Capacity | 38 |
| Net Weight, lbs | 13 |
| Net Weight, kg | 5.8 |
| Filled Weight, lbs | 93 |
| Filled Weight, kg | 42 |
| Dimensions, Exterior | 29.5" H x 18" W x 7.25" D |
| 749.3mm H x 457.2mm W x 184.15mm D | |
| UL Classified to ANSI Z358.1-2014 | Yes |
| Water Flow Eye/Face Liters/min | 2 |
| Water Flow Eye/Face US Gal/min | 0.55 |
| Material Specifications | PVC |
| Activation Method | Pull Handle |
| Operation Duration, min | 15 |
