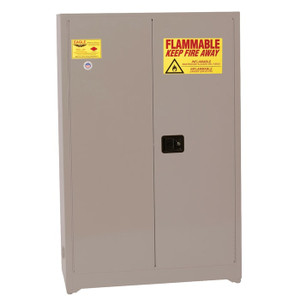

30 Gallon, sliding self-close, Flammable Liquid Safety Cabinet is constructed of 18-gauge (1 mm) steel. The sides, top, bottom, and doors are double-walled with a 1-1/2 in (3.8 cm) air space between walls. Includes two vents, each have 2 in (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system, and 2-in (5.1 cm) raised, leakproof door sill. Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load. Cabinets are FM-Approved and meet NFPA Code 30 and OSHA requirements.
Product Summary:
- Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors
- Constructed of 18-gauge steel
- Lead-free, high-gloss, baked-on powder finish
- Continuous piano hinges
- Ground connection
- Four adjustable galvanized leveling legs
- Trilingual warning labels
- 2 in (5.1 cm) raised leakproof sill
- Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lbs. (158.8 kg) Uniform Distributed Load (UDL)
- Internal and external welded construction
- Two 2 in (5.1 cm) internal vents with fire baffle and cap
- Flush mounted door handle with key lock
- Three-point stainless steel bullet latching system
- 3 in (7.6 cm) centers for shelf brackets
- Self-latching doors
- Door closings: Self-Closing (90° opening)
- Concealed self-close mechanism provides obstruction-free access to top shelf space
- Self-indexing doors guarantee they will close in sequence and ensure a tight closure from top to bottom
Specifications
| Model No | 1930XGRAY |
|---|---|
| Color | Gray |
| Material Specifications | 18-Gauge Steel |
| Door Style | Bi-Fold |
| UPC | 048441691241 |
| Dimensions, Exterior | 43W x 18Dx 44H |
| Dimensions, Interior | 39.5" W x 14.6" D x 39.5" H (100.3 x 37 x 100.3 cm) |
| Number of Doors | 1 |
| Number of Shelves | 1 |
| Lock | Yes |
| Gallon Capacity | 30 |
| Liter Capacity | 113.56 |
| Replacement Shelf Model No. | 29937 |
| Shelf Depth | 14" (35.6 cm) |
| Net Weight, lbs | 224 |
| Net Weight, kgs | 101.6 |
| Adjustable Shelf | Yes |
