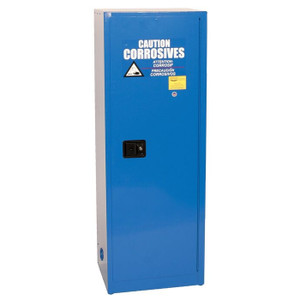

Eagle 24 Gallon, self-closing, Space Saver Acid Corrosive Safety Cabinet is constructed of 18-gauge (1 mm) steel. The sides, top, bottom, and doors are double-walled with a 1-1/2 in (3.8 cm) air space between walls. Includes two vents, each have 2 in (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a corrosion-resistant powder coat finish and includes trilingual warning label, plus grounding attachment, 3-point latch system, and 2-in (5.1 cm) raised, leakproof door sill. Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load. Includes poly shelf and sump trays to help contain small spills and provide extra corrosion protection. Not recommended for use with Sulfuric, Nitric or Hydrochloric acids. Cabinets are FM-approved and meet NFPA Code 30 and OSHA requirements.
Product Summary:
- Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors
- Constructed of 18-gauge steel
- Lead-free, high-gloss, baked-on powder finish
- Continuous piano hinges
- Ground connection
- Four adjustable galvanized leveling legs
- Trilingual warning labels
- 2 in (5.1 cm) raised leakproof sill
- Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lbs. (158.8 kg) Uniform Distributed Load (UDL)
- Internal and external welded construction
- Two 2 in (5.1 cm) internal vents with fire baffle and cap
- Flush mounted door handle with key lock
- Three-point stainless steel bullet latching system
- 3 in (7.6 cm) centers for shelf brackets
- Self-latching doors
- Door closings: Self-Closing (135° opening)
- Concealed self-close mechanism provides obstruction-free access to top shelf space
Specifications
| Model No | CRA2310X |
|---|---|
| Color | Blue |
| Badge | Best Seller |
| Material Specifications | 18-Gauge Steel |
| FM Approval | Yes |
| OSHA Compliance | Yes |
| Complies with NFPA Code 30 | Yes |
| Door Style | Self-close |
| UPC | 048441690855 |
| Dimensions, Exterior | 23.25W x 18Dx 65H |
| Dimensions, Interior | 20" W x 14.6" D x 60.5" H (50.8 x 37 x 153.7 cm) |
| Number of Doors | 1 |
| Number of Shelves | 3 |
| Uniform Fire Code | Yes |
| Lock | Yes |
| Gallon Capacity | 24 |
| Liter Capacity | 90.85 |
| Replacement Shelf Model No. | 29936 |
| Pallet Quantity | 1 |
| Shelf Depth | 14" (35.6 cm) |
| Net Weight, lbs | 184 |
| Net Weight, kgs | 83.46 |
| Adjustable Shelf | Yes |
