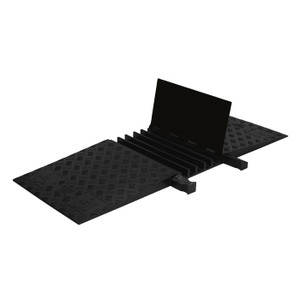

Yellow Jacket® 5-channel ADA cable protectors have built-in ADA accessibility ramps to provide a safe crossing for vehicle and pedestrian traffic while protecting valuable electrical cables and hose lines. Because the ramps are built-in, there is no need for separate connectors. Another unique feature of this product is that it interconnects directly to a 5-channel standard ramp Yellow Jacket® cable protector. This modular interlocking design is available in lightweight 18" sections and it includes a recessed carrying handle on the underside of the protector. Ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications.
Product Summary:
- Protects Cables And Hoses Up To 1.325" Outside Dia.
- Dog Bone Connectors To Extend To Any Desired Length
- Reinforced Hinged Lid For Easy Cable Placement
- ADA Accessibility Ramps Built In - No Connectors Needed
- All-Weather Polyurethane Construction
- Patented 5-Bar Tread Surface For Maximum Traction
- Interconnects with standard 5 Channel Dog Bone® Connector Models
- Ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications
Specifications
| Model No | YJ5-125-ADA-Y/B / YJ5-125-ADA-B/B / YJ5-125ADAY/BLU |
|---|---|
| Quantity Included | 1 |
| Load Capacity Per Axle | 21000 lbs |
| Load Capacity Per Tire | 10500 |
| length (Inches) | 20 |
| Width (Inches) | 50 |
| Height (Inches) | 1.88 |
| Max Cable Outside Diameter (Inches) | 1.325 in. |
| Number of Channels | 5-Channels |
| Connector Type | Dog Bone Connector |
| Channel Width | 1.339 |
Documentation:
Cable Protectors Overview Brochure (1.07 MB)
Yellow Jacket® Cable Protector Brochure (1.67 MB)
