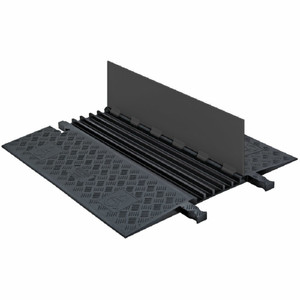

Guard Dog® low-profile models are the most compact top-loading cable protectors on the market. These protectors provide a safe and easy crossing for vehicle and pedestrian traffic, while still maintaining a high load-bearing capacity for heavy equipment. The low-profile models are available with your choice of standard or ADA/DDA compliant ramps.
Product Summary:
- Protects cables and hoses up to .75" outside dia.
- Dog-Bone® Connectors to extend to any desired length
- Reinforced hinged lid for easy cable placement
- With built-in ADA/DDA Accessibility Ramps
- Patented 5-bar tread surface for maximum traction
- Modular interlocking design for easy setup
Specifications
| Model No | GD5X75-B/B |
|---|---|
| UPC | 812958004500 |
| Color | Black Lid / Black Base |
| Quantity Included | 1 |
| Pallet Quantity | 25 |
| Load Capacity Per Axle | 68000 lbs |
| Load Capacity Per Tire | 34000 |
| length (Inches) | 39.88 |
| Width (Inches) | 33.38 |
| Height (Inches) | 1.25 |
| Max Cable Outside Diameter (Inches) | 0.75 in. |
| Number of Channels | 5-Channels |
| Connector Type | Dog Bone Connector |
| Channel Width | 1.28 |
Documentation:
Cable Protectors Overview Brochure (1.07 MB)
