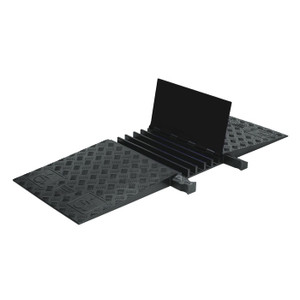

Made of all-weather polyurethane and featuring a patented 5-bar tread surface, Guard Dog's 5-channel ADA cable protectors are equipped with built-in accessibility ramps. This allows them to provide safe passage for both vehicle and foot traffic without the need for separate connectors. Featuring a modular, interlocking design available in lightweight 18'' sections, this protector is ideal for virtually any use. A reinforced hinged lid allows for easy cable placement, while a recessed carrying handle on the protector's underside makes transportation easy. The product is compatible with all standard 5 channel Dog Bone Connector Models, meaning you don't need specialized equipment in order to extend it to whatever length you need.
Product Summary:
- Protects Cables And Hoses Up To 1.325" Outside Dia.
- Dog Bone® connectors To Extend To Any Desired Length
- Reinforced Hinged Lid For Easy Cable Placement
- All-Weather Polyurethane Construction
- Patented 5-Bar Tread Surface For Maximum Traction
- Interconnects with standard 5 Channel Dog Bone Connector Models
- Ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications
Specifications
| Model No | GD5X125-ADA-B/B |
|---|---|
| UPC | 812542024884 |
| Color | Black Lid / Black Base |
| Quantity Included | 1 |
| Load Capacity Per Axle | 21000 lbs |
| Load Capacity Per Tire | 10500 |
| length (Inches) | 20 |
| Width (Inches) | 50 |
| Height (Inches) | 1.88 |
| Max Cable Outside Diameter (Inches) | 1.325 in. |
| Number of Channels | 5-Channels |
| Connector Type | Dog Bone Connector |
| Channel Width | 1.339 |
Documentation:
Cable Protectors Overview Brochure (1.07 MB)
Guard Dog® Cable Protector Brochure (1.55 MB)
