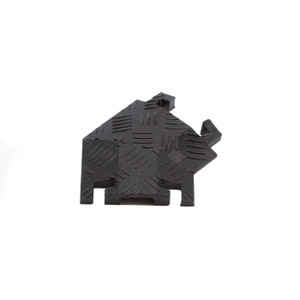

Use 1-Channel Fastlane® Drop-Over Cable Protector 45 Degree Right Turns with FL1X1.5 Series. Fastlane® lightweight drop-over protectors are made from durable polyurethane and feature heavy-duty, patented L-Connectors for easily attaching additional protectors to extend to any desired length. Patented 5-bar tread plate surface provides maximum traction for carts and pedestrian traffic. These low profile protectors fit multiple cable sizes up to .5 inches tall and are compact for easy setup, disassembly, and storage.
Product Summary:
- Protects cables and hoses up to .5" outside dia.
- Patented L-Connectors to extend to any length
- For lightweight vehicles and pedestrian traffic
- Patented 5-bar tread surface for maximum traction
- Universal safety colors (UV stabilized)
- Modular interlocking design for easy setup
Specifications
| Model No | FL45RT1X1.5-Y / FL45RT1X1.5-B |
|---|---|
| Quantity Included | 1 |
| Load Capacity Per Axle | 2100 lbs |
| Load Capacity Per Tire | 1050 |
| length (Inches) | 11.75 |
| Width (Inches) | 11.75 |
| Height (Inches) | 0.75 |
| Max Cable Outside Diameter (Inches) | 0.5 in. |
| Number of Channels | 1-Channel |
| Connector Type | L-Connector Connector |
| Channel Width | 1.5 |
Documentation:
JCable Protectors Overview Brochure (1.07 MB)
Fastlane® Cable Protector Brochure (438.54 KB)
