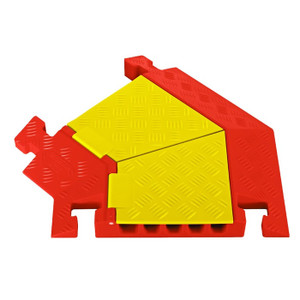

Use the 5-Channel Heavy Duty Linebacker® Left Turn with Linebacker®® 5-channel cable protector with hinged lid. Provides a safe crossing for vehicles and pedestrian traffic while protecting valuable electrical cables and hose lines from damage in extreme weather conditions and work environments. The modular interlocking design is ideal for use in oil and gas applications, mining, military, and other industrial environments with heavy trucks and forklifts.
Product Summary:
- Creates a 45° left turn
- Protects cables and hoses up to 1.35" outside dia.
- Patented T-Connectors to extend to any length
- Reinforced hinged lid for easy cable placement
- All-weather polyurethane construction
- Patented 5-bar tread surface for maximum traction
- Easy to transport, setup, disassemble, and store
Specifications
| Model No | CPT5X125-L-Y/O |
|---|---|
| UPC | 812958001202 |
| Color | Yellow Lid / Orange Base |
| Quantity Included | 1 |
| Pallet Quantity | 30 |
| Load Capacity Per Axle | 40300 lbs |
| Load Capacity Per Tire | 20150 |
| length (Inches) | 24 |
| Width (Inches) | 22.38 |
| Height (Inches) | 2.13 |
| Max Cable Outside Diameter (Inches) | 1.35 in. |
| Number of Channels | 5-Channels |
| Connector Type | T-Connector Connector |
| Channel Width | 1.35 |
Documentation:
Cable Protectors Overview Brochure (1.07 MB)
Linebacker® Cable Protector Brochure (2.09 MB)
