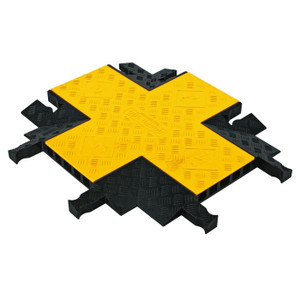

Use the 5-Channel Heavy-Duty Yellow Jacket® 4-Way Cross with Yellow Jacket® 5-channel cable protector with hinged lid. Provides a safe crossing in high volume traffic areas while protecting valuable electrical cables and hose lines from damage. The modular interlocking design is ideal for use in industrial, commercial, and public applications.
Product Summary:
- Creates 90 degree 4-way cross (split or join cable runs)
- Protects cables and hoses up to 1.0" outside dia.
- The "original" cable protector
- Dog bone connectors to extend to any desired length
- Thick lid and base allow for high volume of traffic
- Modular interlocking design
Specifications
| Model No | YJ5X-125-Y/B |
|---|---|
| UPC | 812958009413 |
| Color | Yellow Lid / Black Base |
| Quantity Included | 1 |
| Load Capacity Per Axle | 32600 lbs |
| length (Inches) | 19 |
| Width (Inches) | 20 |
| Height (Inches) | 2 |
| Max Cable Outside Diameter (Inches) | 1.325 in. |
| Number of Channels | 5-Channels |
| Connector Type | Dog Bone Connector |
| Channel Width | 1.339 |
Documentation:
Cable Protectors Overview Brochure (1.07 MB)
Yellow Jacket® Cable Protector Brochure (1.67 MB)
