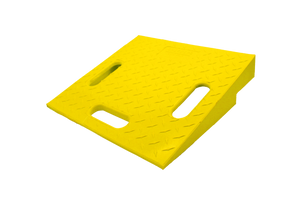

Build your own custom Diamondback® rubber hose bridge system. With tunnels, ramps and tunnel connectors available, Diamondback® hose bridge systems allow the ability to connect any number of tunnel options as required by the task at hand. Tunnels and tunnel connectors are sold individually while tunnel ramps are sold in pairs. This Diamondback® custom rubber hose ramp bridge system allows for a 3.5" cable/hose and is intended for temporary installations only.
Product Summary:
- Polyurethane construction is abrasion, impact and weather resistant with high load-bearing capacity
- Diamond-plate tread surface increases traction
- Yellow caution color for high visibility
- Modular interlocking design is lightweight, easy to transport, setup, disassemble, and store
- Built-in hand holds allow for handling with ease and double as attachment points for mounting brackets
- WARNING: Vehicles crossing bridge system must have clearance of greater than bridge height
- WARNING: Hose Bridges are for rubber tired vehicles only (not for equipment with metal tracks)
Specifications
| Model No | UHB3035R |
|---|---|
| UPC | 812958005392 |
| Quantity Included | 1 |
| Pallet Quantity | 50 |
| Load Capacity Per Axle | 19800 lbs |
| Load Capacity Per Tire | 9900 |
| length (Inches) | 16 |
| Width (Inches) | 15 |
| Height (Inches) | 4.5 |
| Ramp Top Length (Inches) | 14.75 |
| Ramp Base Length (Inches) | 10.75 |
