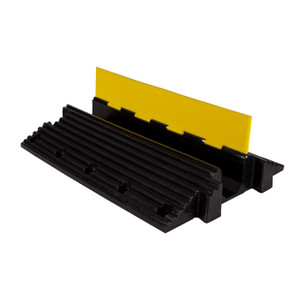

Yellow Jacket® 1-channel cable protector with hinged lid protect valuable large electrical cables and hose lines that are up to 5 inches tall from damage while providing a safe crossing in high volume traffic areas. The modular interlocking design is ideal for extremely heavy duty industrial areas.
Product Summary:
- The "Original" cable protector
- Protects cables and hoses with up to 5.0" outside dia.
- Dog bone connectors to extend to any desired length
- Thick lid and base allow for high volume of traffic
- Hinged lid for easy cable placement
- Modular interlocking design
Specifications
| Model No | YJ1-500-Y/B |
|---|---|
| UPC | 812958009277 |
| Color | Yellow Lid / Black Base |
| Quantity Included | 1 |
| Load Capacity Per Axle | 18870 lbs |
| Load Capacity Per Tire | 9435 |
| length (Inches) | 36 |
| Width (Inches) | 27 |
| Height (Inches) | 6 |
| Max Cable Outside Diameter (Inches) | 5 in. |
| Number of Channels | 1-Channel |
| Connector Type | Dog Bone Connector |
| Channel Width | 5 |
Documentation:
Cable Protectors Overview Brochure (1.07 MB)
Yellow Jacket® Cable Protector Brochure (1.67 MB)
