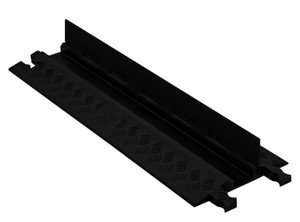

Guard Dog® love-profile cable protector models are the most compact top-loading cable protectors on the market, fitting cables up to 0.75" tall and 2.25" wide. These protectors provide a safe and easy crossing for vehicle and pedestrian traffic while still maintaining a high load-bearing capacity for heavy equipment. The low-profile models are available with your choice of standard or ADA/DDA compliant ramps.
Product Summary:
- Protects cables and hoses up to .75" outside dia.
- Dog-Bone® Connectors to extend to any desired length
- Reinforced hinged lid for easy cable placement
- With standard ramps
- Patented 5-bar tread surface for maximum traction
- Modular interlocking design for easy setup
Specifications
| Model No | GD1X75-ST-B/B |
|---|---|
| UPC | 812958005736 |
| Color | Black Lid / Black Base |
| Quantity Included | 1 |
| Pallet Quantity | 72 |
| Load Capacity Per Axle | 26000 lbs |
| Load Capacity Per Tire | 13000 |
| length (Inches) | 38.5 |
| Width (Inches) | 11 |
| Height (Inches) | 1.25 |
| Max Cable Outside Diameter (Inches) | 0.75 in. |
| Number of Channels | 1-Channel |
| Connector Type | Dog Bone Connector |
| Channel Width | 2.25 |
Documentation:
Cable Protectors Overview Brochure (1.07 MB)
